一、Challenges of Using Blood NK Cells as Cellular Effectors in Cancer Treatment（使用血液NK細胞作為癌癥治療的效應細胞的挑戰）
Over the last few decades, there has been significant advancement of our knowledge concerning the biology of NK cells, which comprise about 10% of the circulating blood lymphocyte pool. A more comprehensive characterization, including gene and surface molecule expression, as well as proteomics, recently has become available [2 4]. It is now well accepted that NK cells are an important component of the rapid cellular immune response that can inhibit the cell-to-cell spread of malignant or infected cells. Not only can they execute immediate (“spontaneous”) killing upon contact with those cells (without the need to be “primed” like T-cells), but they also produce a host of cytokines that support the expansion and function of other immune cells in the blood circulation and the tumor microenvironment.
在過去的幾十年里，我們對NK細胞生物學的認識取得了顯著進展，NK細胞約占循環血液淋巴細胞池的10%。最近，包括基因和表面分子表達以及蛋白質組學在內的更全面的表征已經可用。現在普遍認為，NK細胞是快速細胞免疫反應的重要組成部分，能夠抑制惡性或感染細胞的細胞間傳播。它們不僅可以在與這些細胞接觸時立即（“自發地”）進行殺傷（無需像T細胞那樣“啟動”），還可以產生一系列細胞因子，支持血液循環和腫瘤微環境中其他免疫細胞的擴增和功能。
Through their FcgIII (CD16) receptor, NK cells are major effector cells of ADCC, which is the main effector arm for immunoglobulin G (IgG) 1 and IgG3 monoclonal antibodies (mAbs). Notably, NK cells that express the high-affinity (158V) variant of the CD16 receptor are more effective for mAb-mediated targeted cell killing, although only approximately 10% of the human population is homozygous for this variant [5].
通過其FcγIII（CD16）受體，NK細胞是ADCC的主要效應細胞，這是免疫球蛋白G（IgG）1和IgG3單克隆抗體（mAbs）的主要效應臂。值得注意的是，表達高親和力（158V）CD16受體變異體的NK細胞在mAb介導的靶向細胞殺傷中更為有效，盡管人類人群中只有大約10%的人是這種變異體的純合子。
The effector molecules that execute rapid NK cell mediated target cell killing are perforin and granzymes and to a lesser extent FasL and tumor necrosis factor related apoptosis inducing ligand (TRAIL) [6]. The former are released on contact with transformed cells and act within minutes, with perforin “punching holes” into the membrane of target cells so that granzymes can enter the cell and destroy it by degrading their genetic material. FasL and tumor necrosis factor related apoptosis inducing ligand seem to have a more delayed cytotoxic effect through activation of the death receptor pathways on target cells [6].
執行快速NK細胞介導的靶細胞殺傷的效應分子是穿孔素和顆粒酶，以及在較小程度上的FasL和腫瘤壞死因子相關凋亡誘導配體（TRAIL）。前者在與目標細胞接觸時釋放，并在幾分鐘內起作用，穿孔素在靶細胞膜上“打孔”，使顆粒酶能夠進入細胞并通過降解其遺傳物質來破壞細胞。FasL和腫瘤壞死因子相關凋亡誘導配體似乎通過激活靶細胞上的死亡受體途徑產生更延遲的細胞毒性效應。
Enriching NK cells from blood (peripheral or cord) either for research or clinical applications usually is done by negative selection employing a number of monoclonal antibodies that can deplete and eliminate non-NK cells (reviewed in Kundo et al. [7]). NK cells also may be enriched from blood, based on their characteristic CD56 (neuronal cell adhesion molecule) surface expression. One of the concerns is, however, that the bound antibody may affect the NK cell function and/or can interfere with any further manipulation (engineering) of the cells. Another limitation of such enrichment is the unpredictable variability of yield, particularly for NK cells from patients with cancer whose NK cells often are also dysfunctional due to circulating suppressive serum factors or following chemotherapy. A further challenge is that the NK-cell donors must be connected to a leukapheresis device for several hours to collect their white blood cells, of which only about 10% are NK cells. To achieve sufficient NK cells for therapeutic infusion, NK cells need to be expanded on a cell line feeder layer, which may be genetically altered. In addition, cytokines need to be included to support expansion (reviewed in Saito et al. [8]).
從血液（外周或臍帶）中富集NK細胞用于研究或臨床應用，通常通過負選擇進行，使用多種單克隆抗體耗盡和消除非NK細胞。NK細胞也可以根據其特征性的CD56（神經細胞黏附分子）表面表達從血液中富集。然而，其中一個問題是，結合的抗體可能會影響NK細胞的功能和/或干擾細胞的任何進一步操作（工程改造）。這種富集的另一個限制是產量的不可預測性，特別是對于癌癥患者的NK細胞，因?yàn)檠h(huán)抑制血清因子或化療后，其NK細胞通常也會功能失調。進一步的挑戰是，NK細胞供體必須連接到白細胞分離裝置數小時，以收集其白細胞，其中只有大約10%是NK細胞。為了獲得足夠數量的NK細胞用于治療輸注，需要在細胞系飼養層上擴增NK細胞，該飼養層可能經過基因改造。此外，還需要加入細胞因子以支持?jǐn)U增。
As an alternative to using a patient’s own (autologous) NK cells, allogeneic NK cells can be collected from the blood of a healthy related or unrelated person. Those allogeneic NK-cell collections need to be further treated to remove T lymphocytes, as those can cause the potentially life-threatening graft-versus-host reactions after infusion. This additional purification step adds to the cost of the cell preparation and also results in a further loss of NK cells. Regardless of the source, blood NK cells need to be expanded to have suffi cient numbers of cells available for therapeutic infusion [9]. Another challenge with blood-derived NK cells is the fact that those NK cells are more difficult to manipulate or engineer, requiring more complex, often virus-based gene transduction methods, which come with unpredictable and inconsistent efficacy [8].
作為使用患者自身（自體）NK細胞的替代方法，可以從健康相關或無關人員的血液中收集異體NK細胞。這些異體NK細胞收集后需要進一步處理以去除T淋巴細胞，因?yàn)檫@些細胞在輸注后可能會導致潛在致命的移植物抗宿主反應。這個額外的純化步驟增加了細胞制備的成本，并且也導致NK細胞的進一步損失。無論來源如何，血液NK細胞都需要擴增，以獲得足夠數量的細胞用于治療輸注。血液來源NK細胞的另一個挑戰是，這些NK細胞更難以操作或工程改造，需要更復雜、通?；诓《镜幕蜣D(zhuǎn)導方法，這些方法的效果難以預測且不一致。
Considering those drawbacks of blood-derived NK cells, including the costs of obtaining a consistent NK-cell population from blood for research and clinical applications, a continuously growing NK cell line is an appealing alternative. Although several human NK cell lines have been established [10], only the NK-92 cell line has shown consistently high cytotoxicity against a broad spectrum of cancer cells, and can easily be expanded ex vivo with a short doubling time of 24 36 h [11,12]. Importantly, NK-92 can be genetically engineered by plasmid electroporation to express a high-affinity Fc-receptor, CAR, or molecules that can modulate the tumor microenvironment [13,14].
鑒于血液來源NK細胞的這些缺點，包括從血液中獲得一致的NK細胞群用于研究和臨床應用的成本，持續生長的NK細胞系是一個有吸引力的替代選擇。盡管已經建立了幾種人類NK細胞系，但只有NK-92細胞系顯示出對廣泛癌癥細胞的一致高細胞毒性，并且可以在體外輕松擴增，其倍增時間為24-36小時。重要的是，NK-92可以通過質粒電穿孔進行基因工程改造，以表達高親和力Fc受體、CAR或可以調節腫瘤微環境的分子。
二、Early Clinical Studies with NK-92 （NK-92的早期臨床研究）
In 1997, the license and rights for NK-92 were transferred from the University of British Columbia to Rush Medical Center in Chicago, where in 2001 a phase I trial with NK-92 in patients with advanced cancer was conducted [31]. Due to the responses seen with LAK cell infusions in patients with renal cell cancer and melanoma [32], those two diseases were selected as initial indications for NK-92 infusions.
1997年，NK-92的許可和權利從不列顛哥倫比亞大學轉移到芝加哥的拉什醫學中心，2001年在那里進行了NK-92在晚期癌癥患者中的I期試驗。由于在腎細胞癌和黑色素瘤患者中使用LAK細胞輸注看到了反應，這兩種疾病被選為NK-92輸注的最初適應癥。
In that study, NK-92 cells were infused on days 1, 3 and 5 with the rationale that it usually takes a few days to trigger a T-cell mediated allogeneic immune response that could potentially lead to rejection of the infused NK-92 cells. In this phase I dose-escalation study, 12 patients were enrolled and received a starting dose of 1 x109 NK-92 cells/m2 . The greatest dose administered was 5 x 109 NK-92 cells/m2 cells. None of the patients experienced grade 3 or 4 side effects, and only a few patients developed a mild fever or a rash. Although phase I studies are not designed to assess efficacy, it is noteworthy that the majority of the patients with renal cell cancer experienced a prolonged disease-free survival and overall survival compared with historical controls. The single patient with melanoma in that study had a partial response with significant tumor reduction after the third infusion. In contrast to CAR/T-cell therapy that generally includes some form of immunosuppressive chemotherapy before infusion, NK-92 cells in those and all other studies (including with CAR modified NK-92) were given without any preparative chemotherapy.
在該研究中，NK-92細胞在第1、3和5天進行輸注，理由是通常需要幾天時間才能觸發T細胞介導的異體免疫反應，這可能會導致輸注的NK-92細胞被排斥。在這項I期劑量遞增研究中，共納入了12名患者，起始劑量為每平方米1×10^9個NK-92細胞。給予的最大劑量為每平方米5×10^9個NK-92細胞。沒有患者出現3級或4級副作用，只有少數患者出現輕度發熱或皮疹。盡管I期研究并非旨在評估療效，但值得注意的是，大多數腎細胞癌患者的無病生存期和總生存期比歷史對照組有所延長。該研究中唯一的黑色素瘤患者在第三次輸注后出現了部分反應，腫瘤顯著縮小。與通常在輸注前進行某種形式免疫抑制化療的CAR/T細胞療法不同，NK-92細胞在這些以及所有其他研究（包括CAR修飾的NK-92）中都是在沒有任何準備性化療的情況下給予的。
Contemporaneous with the aforementioned study, Dr. TorstenTonn, who had previously performed post-doctoral work in the author’s laboratory, initiated a phase I trial in Frankfurt, Germany, in pediatric and adult patients with advanced, mostly solid cancers [26]. The schedule consisted of two infusions, given on day 1 and 3. The dose of 1 x 1010 cells/m2 was considered dose-limiting, but not because of side effects, but rather because of logistical challenges of expanding larger numbers of NK-92 cells at that time.
與此同時，托爾斯滕·托恩博士（Torsten Tonn）在德國法蘭克福啟動了一項I期試驗，研究對象為患有晚期癌癥（主要是實體瘤）的兒童和成人患者。該試驗的安排是在第1天和第3天進行兩次輸注。每平方米1×10^10個細胞的劑量被認為是劑量限制性的，但這并非由于副作用，而是因?yàn)楫?dāng)時擴大NK-92細胞數量存在物流挑戰。
Another phase I trial was conducted under the guidance of Dr. Armand Keating, at Ontario Cancer Center in Toronto [15]. Among the 12 patients with advanced hematologic malignancies enrolled in the study, two patients (with myeloma and Hodgkin disease) experienced long-lasting clinical remissions. Patients received multiple infusions over time (planned six monthly cycles). Only one-half of the patients developed HLA antibodies, and none had a positive mixed lymphocyte culture when NK-92 cells were used as stimulators.
在多倫多安大略癌癥中心，阿曼德·基廷博士（Armand Keating）指導進行了另一項I期試驗。在該研究中，共有12名患有晚期血液系統惡性腫瘤的患者接受治療，其中兩名患者（分別患有骨髓瘤和霍奇金?。┙?jīng)歷了長期的臨床緩解。患者接受了多次輸注（計劃進行六次每月）。只有一半的患者產生了HLA抗體，沒有任何患者的混合淋巴細胞培養物呈陽性反應。
In another phase I trial conducted at the University of Pittsburgh, seven patients with treatment-resistant acute myeloid leukemia were enrolled and received NK-92 [33]. Although none of thepatients experienced serious adverse effects, no significant clinical responses were noted, prompting the group to investigate possible reasons for the lack of response. In a subsequent publication, they reported that acute myeloid leukemia cell derived exosomes collected pre-therapy from all seven patients had the ability to inhibit the cytotoxic anti-leukemia effects of NK-92 in co-incubation assays [34].
在匹茲堡大學進行的另一項I期試驗中，共有7名治療抵抗性的急性髓系白血病患者接受NK-92治療。盡管沒有患者出現嚴重的不良反應，但也沒有觀察到顯著的臨床反應，這促使該團隊調查缺乏反應的可能原因。在隨后的出版物中，他們報告稱，所有7名患者在治療前收集的細胞來源的外泌體在共培養試驗中能夠抑制NK-92對白血病的細胞毒性效應。
Pooled response data from all 4 phase I studies reveal that approximately 36% of the treated patients showed some tumor reduction, ranging from tumor shrinkage to partial remission. Most importantly, repeated infusions with NK-92 cells, even at high cell numbers, did not induce any side effects greater than grade 2. In all trials the NK-92 cells were expanded in flasks, bags or G-Rex bioreactors using X-Vivo 10 medium with 5% human serum. For currently ongoing trials with engineered NK-92, the same medium is used but production is scaled up by use of large bioreactors.
所有4項I期研究的匯總反應數據顯示，大約36%的接受治療的患者顯示出某種程度的腫瘤縮小，范圍從腫瘤縮小到部分緩解。最重要的是，即使在高細胞數量下，重復輸注NK-92細胞也沒有引起超過2級的副作用。在所有試驗中，NK-92細胞都是在含有5%人血清的X-Vivo 10培養基中，使用培養瓶、袋子或G-Rex生物反應器進行擴增。對于目前正在開展的基于改造后的NK-92細胞的臨床試驗，使用了相同的培養基，但通過使用大型生物反應器擴大了生產規模。
三、The Next Generation of Engineered NK-92: haNK, taNK, t-haNK, qt-haNK （下一代工程化NK-92：haNK、taNK、t-haNK、qt-haNK）
(1) High-affinity fc-receptor expressing NK-92 (haNK) （高親和力Fc受體表達NK-92（haNK）
Largely as the result of predictable rapid proliferation (doubling time of 24 36 h) and ease of expansion, several genetically engineered variants of NK-92 cells have been generated, including a line expressing a high-affinity Fc-receptor, haNK. NK cells are the main effector cells for mAbs of IgG1 or IgG3 type such as trastuzumab, rituximab or avelumab that engage the CD16 Fc-receptor on NK cells for ADCC. The Fc-receptor on NK cells can have low, intermediate or high affinity for IgG. However, only approximately 10% of the general population expresses the high-affinity Fc-receptor for mAbs on their NK cells, with the majority of people expressing a low- or intermediate-affinity Fc-receptor [5]. This also implies that the majority of the population lacks the most relevant effector mechanism for mAb mediated cytotoxicity. Moreover, the Fc-receptor on blood NK cells is sensitive to the enzymatic cleavage by the ADAM17 enzyme, which can result in reduced efficacy of mAbs [35].
由于NK-92可預測的快速增殖（倍增時間為24-36小時）和易于擴增，已經產生了幾種基因工程改造的NK-92細胞變體，包括表達高親和力Fc受體的haNK。NK細胞是IgG1或IgG3型單克隆抗體（如曲妥珠單抗、利妥昔單抗或阿維魯單抗）的主要效應細胞，這些抗體通過與NK細胞上的CD16 Fc受體結合來介導ADCC。NK細胞上的Fc受體對IgG的親和力可以是低、中或高。然而，在一般人群中，只有大約10%的人在其NK細胞上表達高親和力Fc受體，大多數人表達低或中等親和力的Fc受體。這也意味著大多數人缺乏mAb介導細胞毒性效應的最相關效應機制。此外，血液NK細胞上的Fc受體對ADAM17酶的酶切敏感，這可能導致mAb的療效降低。
With these considerations in mind, haNK cells were generated from NK-92 that express a high-affinity Fc-receptor (CD16A, 158V) genetically linked to endoplasmatic reticulum IL-2 [35]. The endoplasmatic reticulum linked IL-2 guarantees that only low amounts of IL-2 are secreted by haNK cells, but the intra-cellular concentration is sufficient enough to maintain cell viability, expansion and cytotoxicity. Importantly, the Fc-receptor on haNK cells is resistant to ADAM17-mediated degradation [35]. Moreover, studies from the National Cancer Institute have shown that haNK cells do not lose cytotoxicity under low oxygen (hypoxic) conditions, which is in contrast to blood derived NK cells [18]. Hypoxia is one of the significant immunosuppressive factors in the tumor microenvironment.
鑒于這些考慮，從NK-92中產生了haNK細胞，它們表達高親和力Fc受體（CD16A，158V），并且該受體與內質網IL-2基因連接。內質網連接的IL-2確保haNK細胞只分泌少量IL-2，但細胞內濃度足以維持細胞的活性、擴增和細胞毒性。重要的是，haNK細胞上的Fc受體對ADAM17介導的降解具有抵抗力。此外，美國國家癌癥研究所的研究表明，haNK細胞在低氧（缺氧）條件下不會失去細胞毒性，這與血液來源的NK細胞形成對比。缺氧是腫瘤微環境中一個重要的免疫抑制因素。
In a phase II clinical trial (NCT03853317) at the University of Washington, haNK cells were given in combination with Avelumab (anti-programmed death-ligand 1 [PD-L1] mAb) to patients with refractory Merkel cell cancer [36]. The haNK infusions were well tolerated, and despite the very advanced disease state of these patients, objective responses were seen in two of seven patients, including reversal of programmed cell death protein 1 (PD-1) refractoriness in one patient.
在美國華盛頓大學進行的一項II期臨床試驗（NCT03853317）中，haNK細胞與阿維魯單抗（抗程序性死亡配體1 [PD-L1]單克隆抗體）聯合用于治療耐藥的默克爾細胞癌患者。haNK輸注耐受性良好，盡管這些患者的疾病狀態非常晚期，但在7名患者中有2名患者觀察到客觀反應，其中1名患者逆轉了對PD-1的耐藥性。
NK-92 cells have been further engineered to express a recombinant receptor containing the extracellular portion of the high-affinity Fc-receptor CD64 with the transmembrane and intracellular region of CD16A (referred to as CD64/16A). According to preliminary in vitro studies, ADCC is further improved over NK cells that express the CD16A variant [37].
NK-92細胞還被進一步工程化改造，以表達一個重組受體，該受體包含高親和力Fc受體CD64的胞外部分以及CD16A的跨膜和細胞內區域（稱為CD64/16A）。根據初步體外研究，與表達CD16A變體的NK細胞相比，ADCC得到了進一步改善。
The main mechanism of action for most clinically effective mAbs is through ADCC with direct cytotoxicity and complement-mediated cytotoxicity playing a less important role. For that reason, the high-affinity FcR expressing NK-92 cells continue to be used by numerous biotech companies and research laboratories for development and testing of mAbs (available from www.BrinkBiologics.com).
大多數臨床上有效的單克隆抗體的主要作用機制是通過ADCC的直接細胞毒性，補體介導的細胞毒性作用較小。因此，高親和力FcR表達的NK-92細胞繼續被眾多生物技術公司和研究實驗室用于開發和測試單克隆抗體（可通過www.BrinkBiologics.com獲得）。
(2) Targeted NK-92 (taNK) cells expressing CARs （表達CAR的靶向NK-92（taNK）細胞）

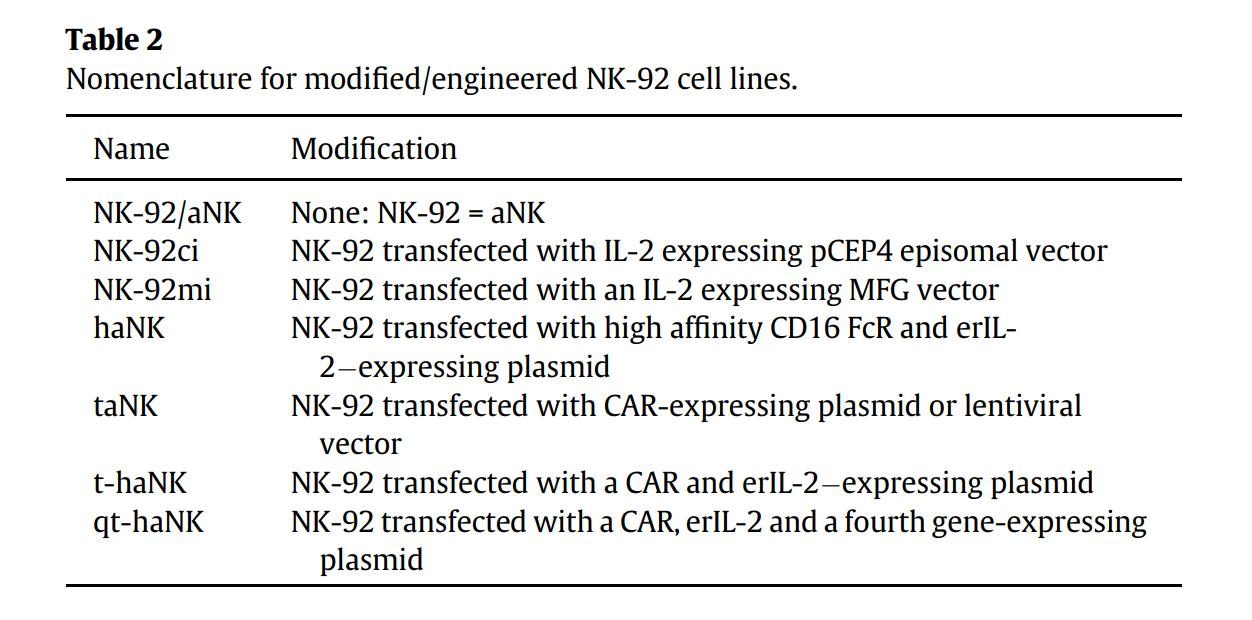

The features of NK-92 cells have stipulated the generation of CARexpressing variants. Table 2 lists the variants of NK-92 cells, including NK-92ci, NK-92mi, haNK, taNK, t-haNK and qt-haNK. Much of the research with CAR-engineered NK-92 cells has been summarized in review papers [38 40]. Investigators have used first and second generation CAR constructs generally delivered by lentiviral or retroviral constructs. Although several studies confirmed the efficacy of CAR-modified NK-92, ImmunityBio, Inc. (which now holds worldwide rights to NK-92 variants) developed CAR-modified NK-92 cells by use of plasmid-based CAR gene constructs and transfected by simple electroporation to generate the NK-92 variants currently used in clinical studies [38,41].
NK-92細胞的特性促使產生了表達CAR的變體。表2列出了NK-92細胞的變體，包括NK-92ci、NK-92mi、haNK、taNK、t-haNK和qt-haNK。關于CAR工程化NK-92細胞的許多研究已在綜述論文中進行了總結。研究人員使用第一代和第二代CAR構建體，這些構建體通常通過慢病毒或逆轉錄病毒載體傳遞。盡管幾項研究證實了CAR修飾的NK-92的療效，但I(xiàn)mmunityBio公司（現持有NK-92變體的全球權利）使用基于質粒的CAR基因構建體，并通過簡單的電穿孔轉染來產生目前用于臨床研究的NK-92變體。
Over the last few decades, there has been significant advancement of our knowledge concerning the biology of NK cells, which comprise about 10% of the circulating blood lymphocyte pool. A more comprehensive characterization, including gene and surface molecule expression, as well as proteomics, recently has become available [2 4]. It is now well accepted that NK cells are an important component of the rapid cellular immune response that can inhibit the cell-to-cell spread of malignant or infected cells. Not only can they execute immediate (“spontaneous”) killing upon contact with those cells (without the need to be “primed” like T-cells), but they also produce a host of cytokines that support the expansion and function of other immune cells in the blood circulation and the tumor microenvironment.
在過去的幾十年里，我們對NK細胞生物學的認識取得了顯著進展，NK細胞約占循環血液淋巴細胞池的10%。最近，包括基因和表面分子表達以及蛋白質組學在內的更全面的表征已經可用。現在普遍認為，NK細胞是快速細胞免疫反應的重要組成部分，能夠抑制惡性或感染細胞的細胞間傳播。它們不僅可以在與這些細胞接觸時立即（“自發地”）進行殺傷（無需像T細胞那樣“啟動”），還可以產生一系列細胞因子，支持血液循環和腫瘤微環境中其他免疫細胞的擴增和功能。
Through their FcgIII (CD16) receptor, NK cells are major effector cells of ADCC, which is the main effector arm for immunoglobulin G (IgG) 1 and IgG3 monoclonal antibodies (mAbs). Notably, NK cells that express the high-affinity (158V) variant of the CD16 receptor are more effective for mAb-mediated targeted cell killing, although only approximately 10% of the human population is homozygous for this variant [5].
通過其FcγIII（CD16）受體，NK細胞是ADCC的主要效應細胞，這是免疫球蛋白G（IgG）1和IgG3單克隆抗體（mAbs）的主要效應臂。值得注意的是，表達高親和力（158V）CD16受體變異體的NK細胞在mAb介導的靶向細胞殺傷中更為有效，盡管人類人群中只有大約10%的人是這種變異體的純合子。
The effector molecules that execute rapid NK cell mediated target cell killing are perforin and granzymes and to a lesser extent FasL and tumor necrosis factor related apoptosis inducing ligand (TRAIL) [6]. The former are released on contact with transformed cells and act within minutes, with perforin “punching holes” into the membrane of target cells so that granzymes can enter the cell and destroy it by degrading their genetic material. FasL and tumor necrosis factor related apoptosis inducing ligand seem to have a more delayed cytotoxic effect through activation of the death receptor pathways on target cells [6].
執行快速NK細胞介導的靶細胞殺傷的效應分子是穿孔素和顆粒酶，以及在較小程度上的FasL和腫瘤壞死因子相關凋亡誘導配體（TRAIL）。前者在與目標細胞接觸時釋放，并在幾分鐘內起作用，穿孔素在靶細胞膜上“打孔”，使顆粒酶能夠進入細胞并通過降解其遺傳物質來破壞細胞。FasL和腫瘤壞死因子相關凋亡誘導配體似乎通過激活靶細胞上的死亡受體途徑產生更延遲的細胞毒性效應。
Enriching NK cells from blood (peripheral or cord) either for research or clinical applications usually is done by negative selection employing a number of monoclonal antibodies that can deplete and eliminate non-NK cells (reviewed in Kundo et al. [7]). NK cells also may be enriched from blood, based on their characteristic CD56 (neuronal cell adhesion molecule) surface expression. One of the concerns is, however, that the bound antibody may affect the NK cell function and/or can interfere with any further manipulation (engineering) of the cells. Another limitation of such enrichment is the unpredictable variability of yield, particularly for NK cells from patients with cancer whose NK cells often are also dysfunctional due to circulating suppressive serum factors or following chemotherapy. A further challenge is that the NK-cell donors must be connected to a leukapheresis device for several hours to collect their white blood cells, of which only about 10% are NK cells. To achieve sufficient NK cells for therapeutic infusion, NK cells need to be expanded on a cell line feeder layer, which may be genetically altered. In addition, cytokines need to be included to support expansion (reviewed in Saito et al. [8]).
從血液（外周或臍帶）中富集NK細胞用于研究或臨床應用，通常通過負選擇進行，使用多種單克隆抗體耗盡和消除非NK細胞。NK細胞也可以根據其特征性的CD56（神經細胞黏附分子）表面表達從血液中富集。然而，其中一個問題是，結合的抗體可能會影響NK細胞的功能和/或干擾細胞的任何進一步操作（工程改造）。這種富集的另一個限制是產量的不可預測性，特別是對于癌癥患者的NK細胞，因?yàn)檠h(huán)抑制血清因子或化療后，其NK細胞通常也會功能失調。進一步的挑戰是，NK細胞供體必須連接到白細胞分離裝置數小時，以收集其白細胞，其中只有大約10%是NK細胞。為了獲得足夠數量的NK細胞用于治療輸注，需要在細胞系飼養層上擴增NK細胞，該飼養層可能經過基因改造。此外，還需要加入細胞因子以支持?jǐn)U增。
As an alternative to using a patient’s own (autologous) NK cells, allogeneic NK cells can be collected from the blood of a healthy related or unrelated person. Those allogeneic NK-cell collections need to be further treated to remove T lymphocytes, as those can cause the potentially life-threatening graft-versus-host reactions after infusion. This additional purification step adds to the cost of the cell preparation and also results in a further loss of NK cells. Regardless of the source, blood NK cells need to be expanded to have suffi cient numbers of cells available for therapeutic infusion [9]. Another challenge with blood-derived NK cells is the fact that those NK cells are more difficult to manipulate or engineer, requiring more complex, often virus-based gene transduction methods, which come with unpredictable and inconsistent efficacy [8].
作為使用患者自身（自體）NK細胞的替代方法，可以從健康相關或無關人員的血液中收集異體NK細胞。這些異體NK細胞收集后需要進一步處理以去除T淋巴細胞，因?yàn)檫@些細胞在輸注后可能會導致潛在致命的移植物抗宿主反應。這個額外的純化步驟增加了細胞制備的成本，并且也導致NK細胞的進一步損失。無論來源如何，血液NK細胞都需要擴增，以獲得足夠數量的細胞用于治療輸注。血液來源NK細胞的另一個挑戰是，這些NK細胞更難以操作或工程改造，需要更復雜、通?；诓《镜幕蜣D(zhuǎn)導方法，這些方法的效果難以預測且不一致。
Considering those drawbacks of blood-derived NK cells, including the costs of obtaining a consistent NK-cell population from blood for research and clinical applications, a continuously growing NK cell line is an appealing alternative. Although several human NK cell lines have been established [10], only the NK-92 cell line has shown consistently high cytotoxicity against a broad spectrum of cancer cells, and can easily be expanded ex vivo with a short doubling time of 24 36 h [11,12]. Importantly, NK-92 can be genetically engineered by plasmid electroporation to express a high-affinity Fc-receptor, CAR, or molecules that can modulate the tumor microenvironment [13,14].
鑒于血液來源NK細胞的這些缺點，包括從血液中獲得一致的NK細胞群用于研究和臨床應用的成本，持續生長的NK細胞系是一個有吸引力的替代選擇。盡管已經建立了幾種人類NK細胞系，但只有NK-92細胞系顯示出對廣泛癌癥細胞的一致高細胞毒性，并且可以在體外輕松擴增，其倍增時間為24-36小時。重要的是，NK-92可以通過質粒電穿孔進行基因工程改造，以表達高親和力Fc受體、CAR或可以調節腫瘤微環境的分子。
二、Early Clinical Studies with NK-92 （NK-92的早期臨床研究）
In 1997, the license and rights for NK-92 were transferred from the University of British Columbia to Rush Medical Center in Chicago, where in 2001 a phase I trial with NK-92 in patients with advanced cancer was conducted [31]. Due to the responses seen with LAK cell infusions in patients with renal cell cancer and melanoma [32], those two diseases were selected as initial indications for NK-92 infusions.
1997年，NK-92的許可和權利從不列顛哥倫比亞大學轉移到芝加哥的拉什醫學中心，2001年在那里進行了NK-92在晚期癌癥患者中的I期試驗。由于在腎細胞癌和黑色素瘤患者中使用LAK細胞輸注看到了反應，這兩種疾病被選為NK-92輸注的最初適應癥。
In that study, NK-92 cells were infused on days 1, 3 and 5 with the rationale that it usually takes a few days to trigger a T-cell mediated allogeneic immune response that could potentially lead to rejection of the infused NK-92 cells. In this phase I dose-escalation study, 12 patients were enrolled and received a starting dose of 1 x109 NK-92 cells/m2 . The greatest dose administered was 5 x 109 NK-92 cells/m2 cells. None of the patients experienced grade 3 or 4 side effects, and only a few patients developed a mild fever or a rash. Although phase I studies are not designed to assess efficacy, it is noteworthy that the majority of the patients with renal cell cancer experienced a prolonged disease-free survival and overall survival compared with historical controls. The single patient with melanoma in that study had a partial response with significant tumor reduction after the third infusion. In contrast to CAR/T-cell therapy that generally includes some form of immunosuppressive chemotherapy before infusion, NK-92 cells in those and all other studies (including with CAR modified NK-92) were given without any preparative chemotherapy.
在該研究中，NK-92細胞在第1、3和5天進行輸注，理由是通常需要幾天時間才能觸發T細胞介導的異體免疫反應，這可能會導致輸注的NK-92細胞被排斥。在這項I期劑量遞增研究中，共納入了12名患者，起始劑量為每平方米1×10^9個NK-92細胞。給予的最大劑量為每平方米5×10^9個NK-92細胞。沒有患者出現3級或4級副作用，只有少數患者出現輕度發熱或皮疹。盡管I期研究并非旨在評估療效，但值得注意的是，大多數腎細胞癌患者的無病生存期和總生存期比歷史對照組有所延長。該研究中唯一的黑色素瘤患者在第三次輸注后出現了部分反應，腫瘤顯著縮小。與通常在輸注前進行某種形式免疫抑制化療的CAR/T細胞療法不同，NK-92細胞在這些以及所有其他研究（包括CAR修飾的NK-92）中都是在沒有任何準備性化療的情況下給予的。
Contemporaneous with the aforementioned study, Dr. TorstenTonn, who had previously performed post-doctoral work in the author’s laboratory, initiated a phase I trial in Frankfurt, Germany, in pediatric and adult patients with advanced, mostly solid cancers [26]. The schedule consisted of two infusions, given on day 1 and 3. The dose of 1 x 1010 cells/m2 was considered dose-limiting, but not because of side effects, but rather because of logistical challenges of expanding larger numbers of NK-92 cells at that time.
與此同時，托爾斯滕·托恩博士（Torsten Tonn）在德國法蘭克福啟動了一項I期試驗，研究對象為患有晚期癌癥（主要是實體瘤）的兒童和成人患者。該試驗的安排是在第1天和第3天進行兩次輸注。每平方米1×10^10個細胞的劑量被認為是劑量限制性的，但這并非由于副作用，而是因?yàn)楫?dāng)時擴大NK-92細胞數量存在物流挑戰。
Another phase I trial was conducted under the guidance of Dr. Armand Keating, at Ontario Cancer Center in Toronto [15]. Among the 12 patients with advanced hematologic malignancies enrolled in the study, two patients (with myeloma and Hodgkin disease) experienced long-lasting clinical remissions. Patients received multiple infusions over time (planned six monthly cycles). Only one-half of the patients developed HLA antibodies, and none had a positive mixed lymphocyte culture when NK-92 cells were used as stimulators.
在多倫多安大略癌癥中心，阿曼德·基廷博士（Armand Keating）指導進行了另一項I期試驗。在該研究中，共有12名患有晚期血液系統惡性腫瘤的患者接受治療，其中兩名患者（分別患有骨髓瘤和霍奇金?。┙?jīng)歷了長期的臨床緩解。患者接受了多次輸注（計劃進行六次每月）。只有一半的患者產生了HLA抗體，沒有任何患者的混合淋巴細胞培養物呈陽性反應。
In another phase I trial conducted at the University of Pittsburgh, seven patients with treatment-resistant acute myeloid leukemia were enrolled and received NK-92 [33]. Although none of thepatients experienced serious adverse effects, no significant clinical responses were noted, prompting the group to investigate possible reasons for the lack of response. In a subsequent publication, they reported that acute myeloid leukemia cell derived exosomes collected pre-therapy from all seven patients had the ability to inhibit the cytotoxic anti-leukemia effects of NK-92 in co-incubation assays [34].
在匹茲堡大學進行的另一項I期試驗中，共有7名治療抵抗性的急性髓系白血病患者接受NK-92治療。盡管沒有患者出現嚴重的不良反應，但也沒有觀察到顯著的臨床反應，這促使該團隊調查缺乏反應的可能原因。在隨后的出版物中，他們報告稱，所有7名患者在治療前收集的細胞來源的外泌體在共培養試驗中能夠抑制NK-92對白血病的細胞毒性效應。
Pooled response data from all 4 phase I studies reveal that approximately 36% of the treated patients showed some tumor reduction, ranging from tumor shrinkage to partial remission. Most importantly, repeated infusions with NK-92 cells, even at high cell numbers, did not induce any side effects greater than grade 2. In all trials the NK-92 cells were expanded in flasks, bags or G-Rex bioreactors using X-Vivo 10 medium with 5% human serum. For currently ongoing trials with engineered NK-92, the same medium is used but production is scaled up by use of large bioreactors.
所有4項I期研究的匯總反應數據顯示，大約36%的接受治療的患者顯示出某種程度的腫瘤縮小，范圍從腫瘤縮小到部分緩解。最重要的是，即使在高細胞數量下，重復輸注NK-92細胞也沒有引起超過2級的副作用。在所有試驗中，NK-92細胞都是在含有5%人血清的X-Vivo 10培養基中，使用培養瓶、袋子或G-Rex生物反應器進行擴增。對于目前正在開展的基于改造后的NK-92細胞的臨床試驗，使用了相同的培養基，但通過使用大型生物反應器擴大了生產規模。
三、The Next Generation of Engineered NK-92: haNK, taNK, t-haNK, qt-haNK （下一代工程化NK-92：haNK、taNK、t-haNK、qt-haNK）
(1) High-affinity fc-receptor expressing NK-92 (haNK) （高親和力Fc受體表達NK-92（haNK）
Largely as the result of predictable rapid proliferation (doubling time of 24 36 h) and ease of expansion, several genetically engineered variants of NK-92 cells have been generated, including a line expressing a high-affinity Fc-receptor, haNK. NK cells are the main effector cells for mAbs of IgG1 or IgG3 type such as trastuzumab, rituximab or avelumab that engage the CD16 Fc-receptor on NK cells for ADCC. The Fc-receptor on NK cells can have low, intermediate or high affinity for IgG. However, only approximately 10% of the general population expresses the high-affinity Fc-receptor for mAbs on their NK cells, with the majority of people expressing a low- or intermediate-affinity Fc-receptor [5]. This also implies that the majority of the population lacks the most relevant effector mechanism for mAb mediated cytotoxicity. Moreover, the Fc-receptor on blood NK cells is sensitive to the enzymatic cleavage by the ADAM17 enzyme, which can result in reduced efficacy of mAbs [35].
由于NK-92可預測的快速增殖（倍增時間為24-36小時）和易于擴增，已經產生了幾種基因工程改造的NK-92細胞變體，包括表達高親和力Fc受體的haNK。NK細胞是IgG1或IgG3型單克隆抗體（如曲妥珠單抗、利妥昔單抗或阿維魯單抗）的主要效應細胞，這些抗體通過與NK細胞上的CD16 Fc受體結合來介導ADCC。NK細胞上的Fc受體對IgG的親和力可以是低、中或高。然而，在一般人群中，只有大約10%的人在其NK細胞上表達高親和力Fc受體，大多數人表達低或中等親和力的Fc受體。這也意味著大多數人缺乏mAb介導細胞毒性效應的最相關效應機制。此外，血液NK細胞上的Fc受體對ADAM17酶的酶切敏感，這可能導致mAb的療效降低。
With these considerations in mind, haNK cells were generated from NK-92 that express a high-affinity Fc-receptor (CD16A, 158V) genetically linked to endoplasmatic reticulum IL-2 [35]. The endoplasmatic reticulum linked IL-2 guarantees that only low amounts of IL-2 are secreted by haNK cells, but the intra-cellular concentration is sufficient enough to maintain cell viability, expansion and cytotoxicity. Importantly, the Fc-receptor on haNK cells is resistant to ADAM17-mediated degradation [35]. Moreover, studies from the National Cancer Institute have shown that haNK cells do not lose cytotoxicity under low oxygen (hypoxic) conditions, which is in contrast to blood derived NK cells [18]. Hypoxia is one of the significant immunosuppressive factors in the tumor microenvironment.
鑒于這些考慮，從NK-92中產生了haNK細胞，它們表達高親和力Fc受體（CD16A，158V），并且該受體與內質網IL-2基因連接。內質網連接的IL-2確保haNK細胞只分泌少量IL-2，但細胞內濃度足以維持細胞的活性、擴增和細胞毒性。重要的是，haNK細胞上的Fc受體對ADAM17介導的降解具有抵抗力。此外，美國國家癌癥研究所的研究表明，haNK細胞在低氧（缺氧）條件下不會失去細胞毒性，這與血液來源的NK細胞形成對比。缺氧是腫瘤微環境中一個重要的免疫抑制因素。
In a phase II clinical trial (NCT03853317) at the University of Washington, haNK cells were given in combination with Avelumab (anti-programmed death-ligand 1 [PD-L1] mAb) to patients with refractory Merkel cell cancer [36]. The haNK infusions were well tolerated, and despite the very advanced disease state of these patients, objective responses were seen in two of seven patients, including reversal of programmed cell death protein 1 (PD-1) refractoriness in one patient.
在美國華盛頓大學進行的一項II期臨床試驗（NCT03853317）中，haNK細胞與阿維魯單抗（抗程序性死亡配體1 [PD-L1]單克隆抗體）聯合用于治療耐藥的默克爾細胞癌患者。haNK輸注耐受性良好，盡管這些患者的疾病狀態非常晚期，但在7名患者中有2名患者觀察到客觀反應，其中1名患者逆轉了對PD-1的耐藥性。
NK-92 cells have been further engineered to express a recombinant receptor containing the extracellular portion of the high-affinity Fc-receptor CD64 with the transmembrane and intracellular region of CD16A (referred to as CD64/16A). According to preliminary in vitro studies, ADCC is further improved over NK cells that express the CD16A variant [37].
NK-92細胞還被進一步工程化改造，以表達一個重組受體，該受體包含高親和力Fc受體CD64的胞外部分以及CD16A的跨膜和細胞內區域（稱為CD64/16A）。根據初步體外研究，與表達CD16A變體的NK細胞相比，ADCC得到了進一步改善。
The main mechanism of action for most clinically effective mAbs is through ADCC with direct cytotoxicity and complement-mediated cytotoxicity playing a less important role. For that reason, the high-affinity FcR expressing NK-92 cells continue to be used by numerous biotech companies and research laboratories for development and testing of mAbs (available from www.BrinkBiologics.com).
大多數臨床上有效的單克隆抗體的主要作用機制是通過ADCC的直接細胞毒性，補體介導的細胞毒性作用較小。因此，高親和力FcR表達的NK-92細胞繼續被眾多生物技術公司和研究實驗室用于開發和測試單克隆抗體（可通過www.BrinkBiologics.com獲得）。
(2) Targeted NK-92 (taNK) cells expressing CARs （表達CAR的靶向NK-92（taNK）細胞）
The features of NK-92 cells have stipulated the generation of CARexpressing variants. Table 2 lists the variants of NK-92 cells, including NK-92ci, NK-92mi, haNK, taNK, t-haNK and qt-haNK. Much of the research with CAR-engineered NK-92 cells has been summarized in review papers [38 40]. Investigators have used first and second generation CAR constructs generally delivered by lentiviral or retroviral constructs. Although several studies confirmed the efficacy of CAR-modified NK-92, ImmunityBio, Inc. (which now holds worldwide rights to NK-92 variants) developed CAR-modified NK-92 cells by use of plasmid-based CAR gene constructs and transfected by simple electroporation to generate the NK-92 variants currently used in clinical studies [38,41].
NK-92細胞的特性促使產生了表達CAR的變體。表2列出了NK-92細胞的變體，包括NK-92ci、NK-92mi、haNK、taNK、t-haNK和qt-haNK。關于CAR工程化NK-92細胞的許多研究已在綜述論文中進行了總結。研究人員使用第一代和第二代CAR構建體，這些構建體通常通過慢病毒或逆轉錄病毒載體傳遞。盡管幾項研究證實了CAR修飾的NK-92的療效，但I(xiàn)mmunityBio公司（現持有NK-92變體的全球權利）使用基于質粒的CAR基因構建體，并通過簡單的電穿孔轉染來產生目前用于臨床研究的NK-92變體。
When CAR/T-cell therapies were being developed and the first clinical trial results were made available, it became clear that the high costs of producing them as well as the CRS and ICANS were sufficient motivation to explore NK cells and particularly NK-92 cells as an alternative source of CAR engineered cytotoxic immune cells.
當CAR/T細胞療法正在開發并且首次臨床試驗結果公布時，生產CAR/T的高成本以及CRS和ICANS因素促使人們探索將NK細胞，特別是NK-92細胞，作為CAR工程化細胞毒性免疫細胞的替代來源。
In collaboration with the German group in Frankfurt, lentivirus based transduction was used to generate a clinical grade NK-92 variant that expresses a CAR for HER2 (ErbB2) [42]. The group went on to start a clinical trial (NCT03383978) in patients with HER2-positive glioblastoma. Patients are receiving intracranial HER2 CAR expressing NK-92 cells injected into the resection margin during relapse surgery. The single-dose escalation part of the phase I study in nine patients has been completed, and no significant side effects were observed [43]. In the current extension of the study, a more permanent micro catheter is placed into the post-surgical cavity, and patients receive repeated injections of HER2 CAR-engineered NK-92 cells. Since approximately 40% of glioblastoma tumors are positive for HER2 expression, it will be important to see whether this treatment can prolong remissions and maintain quality of life for patients with this devastating brain cancer.
在與德國法蘭克福小組合作中，使用慢病毒介導的轉導產生了表達針對HER2（ErbB2）的CAR的臨床級NK-92變體。該小組隨后啟動了一項臨床試驗（NCT03383978），針對HER2陽性膠質母細胞瘤患者?；颊咴诮邮軓?fù)發手術期間，將HER2 CAR表達的NK-92細胞注入切除邊緣。該I期研究的單劑量遞增部分已在9名患者中完成，未觀察到顯著的副作用。在當前研究的擴展中，將更永久的微導管放置在術后腔內，患者接受重復注射HER2 CAR工程化的NK-92細胞。由于大約40%的膠質母細胞瘤腫瘤表達HER2，因此將重要的是看看這種治療是否能夠延長緩解期并維持這些患有這種毀滅性腦癌患者的生活質量。
To further dissect why HER2 taNK cells kill their tumor target so effectively, the group at the University in Dresden, Germany, used special confocal microscopy for live imaging of NK-92 cells and its HER2 CAR variant. The purpose of the study was to determine the different steps of lytic granule movement in both cell lines [44]. They found that although unmodified NK-92 cells are able to form conjugates with Her-2 expressing cancer cells, their lytic granules do not polarize toward the synapse with cancer targets. In contrast, CAR expressing NK-92 cells or haNK cells, expressing a high-affinity Fc receptor in combination with a HER2 specific antibody, were able to
effectively polarize their granules toward the synapse and release them for effective killing of the cancer target.
為了進一步剖析為什么HER2 taNK細胞能如此有效地殺死其腫瘤靶標，德國德累斯頓大學的小組使用特殊的共聚焦顯微鏡對NK-92細胞及其HER2 CAR變體進行活體成像。該研究的目的是確定兩種細胞系中溶酶體顆粒運動的不同步驟。他們發現，盡管未修飾的NK-92細胞能夠與表達Her-2的癌細胞形成共軛物，但它們的溶酶體顆粒不會極化朝向與癌細胞靶標的突觸。相比之下，表達CAR的NK-92細胞或表達高親和力Fc受體與HER2特異性抗體結合的haNK細胞能夠有效地將它們的顆粒極化朝向突觸并釋放它們，以有效地殺死癌細胞靶標。
In addition to systemic infusion of NK-92 cells/variants, intra tumoral injection has been studied. Our group has shown in a murine model that intra-tumor injection of CD19 CAR-modified NK-92 cells can induce regression of subcutaneous lymphoma [45]. Remarkably, upon re-challenge of the mice with the same lymphoma cell line, no tumor re-growth occurred. This strongly suggest that intra-tumor injection of NK-92 cells can induce a systemic memory-like immune response. In a murine glioblastoma model, intra-tumor injection of ErbB2 CAR-NK-92 cells the Frankfurt group confirmed that specific IgG antibodies against the tumor had developed in treated mice that together with T cells provided long-term protection against rechallenge with the same tumor [42].
除了全身輸注NK-92細胞/變體外，還研究了瘤內注射。我們的小組在小鼠模型中表明，瘤內注射CD19 CAR修飾的NK-92細胞可以誘導皮下淋巴瘤的消退。值得注意的是，在用相同淋巴瘤細胞系重新挑戰小鼠時，沒有腫瘤重新生長。這強有力地表明，NK-92細胞的瘤內注射可以誘導系統性記憶樣免疫反應。在小鼠膠質母細胞瘤模型中，法蘭克福小組證實，在接受ErbB2 CAR-NK-92細胞治療的小鼠中，針對腫瘤產生了特異性IgG抗體，這些抗體與T細胞一起為小鼠提供了長期的保護，使其免受相同腫瘤的復發。
(3) t-haNK (targeted high-affinity NK-92) cells expressing a high-affinity FcR and a CAR （表達高親和力FcR和CAR的t-haNK（靶向高親和力NK-92）細胞）
The t-haNK modification of NK-92 uses a polycistronic plasmid comprising FcR (158V) and erIL-2 as well as a first-generation CAR. In contrast to CAR/T cells, these t-haNK cells not only provide CAR-specific target cell recognition and killing but also have additional target cell killing mechanisms in place including spontaneous NK-mediated cytotoxicity as well as ADCC through their high-affinity FcR [38,41].
t-haNK對NK-92的修飾使用包含F(xiàn)cR（158V）和erIL-2的多順反子質粒。與CAR/T細胞不同，這些t-haNK細胞不僅提供CAR特異性靶細胞識別和殺傷，還具有其他靶細胞殺傷機制，包括自發的NK介導的細胞毒性以及通過其高親和力FcR進行的ADCC效應。
A number of clinical-grade t-haNK clones have been generated expressing the CARs for PD-L1, CD19, Her-2 and epidermal growth factor receptor (EGFR) [4,38]. PD-L1 t-haNK cells have been given to a number of patients with solid tumors in a phase I/II study. In some patients with triple-negative breast cancer and pancreatic cancer, some remarkable responses have been observed. Importantly, no significant side effects were noted, in particular no CRS/ICANS (ImmunityBio, internal data from ongoing studies).
已經產生了一系列表達針對PD-L1、CD19、Her-2和表皮生長因子受體（EGFR）的CAR的臨床級t-haNK細胞。PD-L1 t-haNK細胞已在一項I/II期研究中給予多名實體瘤患者。在一些患有三陰性乳腺癌和胰腺癌的患者中，觀察到了一些顯著的反應。重要的是，沒有觀察到顯著的副作用，特別是沒有CRS/ICANS（ImmunityBio正在進行的內部研究數據）。
The next generation of t-haNK clones introduces a fourth gene coding for a molecule of choice. In the CD19 t-haNK cell line, the gene for the CCR7 homing receptor for lymphatic tissue was incorporated into such a quadrocistronic construct [46] (qt-haNK). Encouraging preclinical data including a reduction of human lymphoma growth were noted in NOD SCID mice compared with a CD19 t-haNK without CCR7. The quadrocistronic concept also allows to incorporate genes coding for proteins that can positively affect the tumor microenvironment such as a TGF-beta trap or IL-12 (ImmunityBio, internal data).
下一代t-haNK克隆引入了編碼選定分子的第四個基因。在CD19 t-haNK細胞系中，將編碼CCR7淋巴組織歸巢受體的基因納入了這種四順反子構建體中（qt-haNK）。在NOD SCID小鼠中，與沒有CCR7的CD19 t-haNK相比，觀察到了令人鼓舞的臨床前數據，如人類淋巴瘤生長的抑制。四順反子還可以接入編碼可以積極影響腫瘤微環境的蛋白的基因，例如TGF-beta陷阱或IL-12（ImmunityBio內部數據）。
